A.1.3 EMC filters

AC filters remove high frequency noise from the AC power supply, protecting the MicroFlex e100. These filters also prevent high frequency signals from being transmitted back onto the power lines and help meet EMC requirements. To select the correct filter, see sections 3.4.7 and 3.4.8.

A.1.3.1 Catalog numbers





































Baldor

Rated volts

Rated amps

Leakage current

Weight



catalog number

@ 40°C

(mA)

kg (lbs)







FI0014A00

250

3

0.4



0.27 (0.6)



FI0015A00

250

6

0.4



0.45

(0.99)



FI0015A01

250

10

0.4



0.73

(1.61)



FI0015A02

250

12

0.4



0.73

(1.61)



FI0018A00

480

7

33



0.5

(1.1)



FI0018A03

480

16

33



0.8 (1.76)



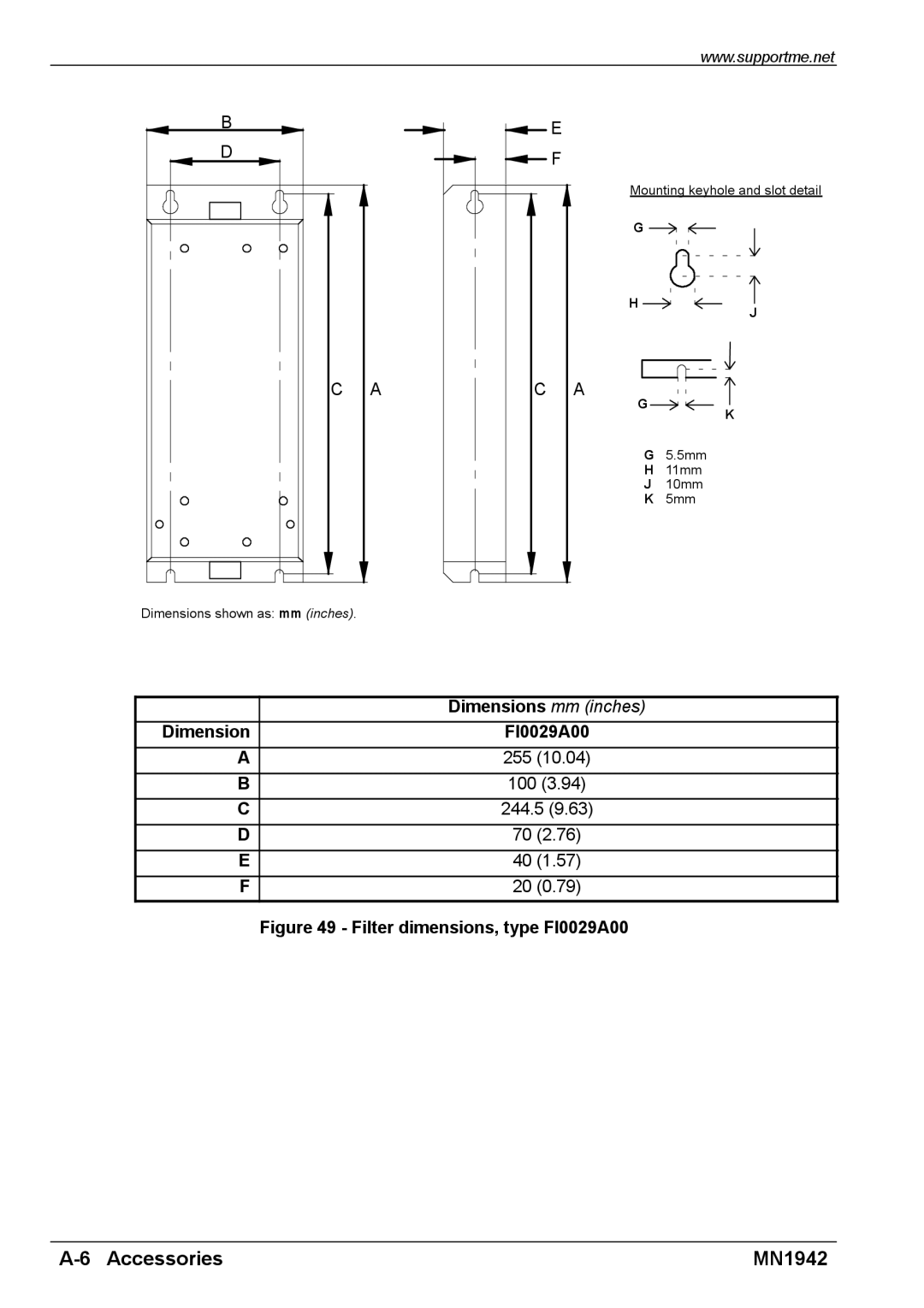

FI0029A00

250

22

33



3.0

(6.6)



































































B

F



M5







A

D

E

G







C



Dimensions mm (inches)

Dimension

FI0018A00

FI0018A03

A

190 (7.48)

250 (9.84)

B

160 (6.30)

220 (8.66)

C

180 (7.09)

235 (9.25)

D

20 (0.79)

25 (0.98)

E

4.5 (0.18)

5.4 (0.21)

F

71 (2.80)

70 (2.76)

G

40 (1.57)

45 (1.77)

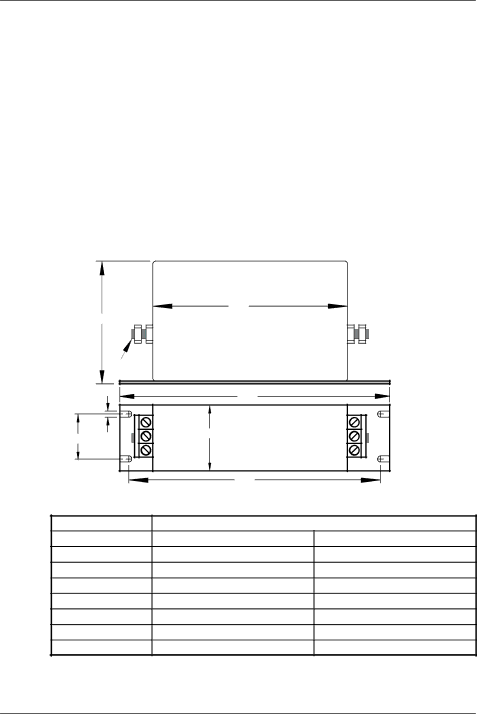

Figure 47 - Filter dimensions, types FI0018A00 and FI0018A03

A-4 Accessories

MN1942
