This section provides technical specifications for the MicroFlex e100.

8.1.1 AC input power and DC bus voltage (X1)

All models

Unit





AC input





































Nominal input voltage

VAC





115 or 230





















Minimum input voltage







105*























Maximum input voltage









250























Nominal DC-bus voltage

VDC



305







321



@230VAC input







































3A

6A

9A



3A

6A

9A

Nominal input current

A















7.5

15

22



4

8

12

@ maximum rated output current



































* The MicroFlex e100 will operate at lower input voltages, although the drive will trip if the DC-bus voltage falls below 50V or 60% of the no-load voltage, whichever occurs first.

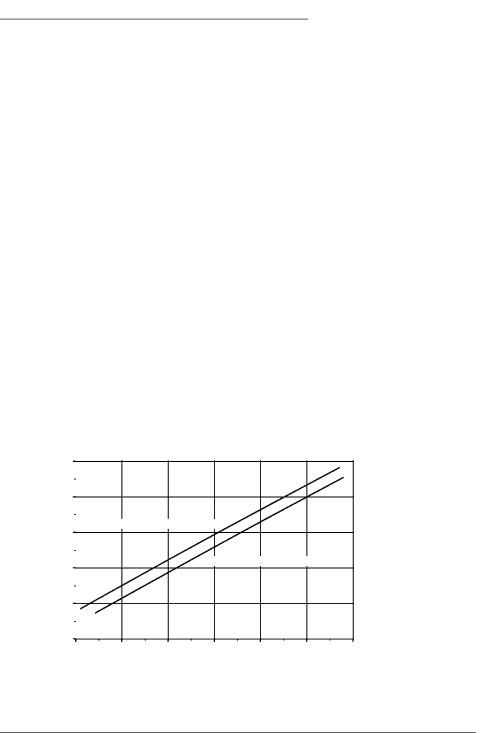

8.1.1.1Effect of AC power supply voltage on DC-bus voltage



350







(VDC)

300



250



voltage



200



DC-bus



150









100









100

Three-phase AC supply

Single-phase AC supply

125

150

175

200

225

250

AC supply voltage (rms)

MN1942

Specifications 8-1

Page 101
Image 101
Baldor E100 manual AC input power and DC bus voltage, Effect of AC power supply voltage on DC-bus voltage
