Baldor E100 A-6 Accessories MN1942

www.supportme.net

A-6 Accessories MN1942

Mountingkeyhole and slot detail

G5.5mm

H11mm

J10mm

K5mm

Dimensionsshown as: mm (inches).

Dimensionsmm (inches )

Dimension FI0029A00

A255(10.04)

B100(3.94)

C244.5(9.63)

D70(2.76)

E40(1.57)

F20(0.79)

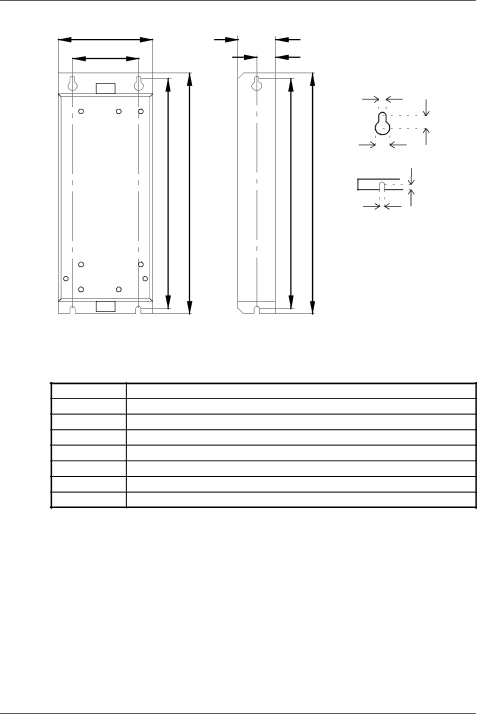

Figure49 - Filter dimensions, type FI0029A00
