2 Troubleshooting Procedures

2.7 Keyboard/Touch pad Troubleshooting

2.7Keyboard/Touch pad Troubleshooting

To determine if the computer’s keyboard or touch pad is functioning properly, perform the following procedures. Start with Procedure 1 and continue with the other procedures as instructed.

Procedure 1: Diagnostic Test Program Execution Check

Procedure 2: Connector Check and Replacement Check

Procedure 1 Diagnostic Test Program Execution Check

Execute the Keyboard Test in the Diagnostic Program. Refer to Chapter 3, Tests and Diagnostics, for more information on how to perform the test program.

If an error occurs, go to Procedure 2. If an error does not occur, the keyboard is functioning properly.

Procedure 2 Connector Check and Replacement Check

The keyboard or touch pad may be disconnected or damaged. Disassemble the computer following the steps described in Chapter 4, Replacement Procedures, and perform the following checks:

1.When checking the keyboard, perform Check 1.

2.When checking the touch pad, perform Check 3.

3.When checking the SW board, perform Check 6.

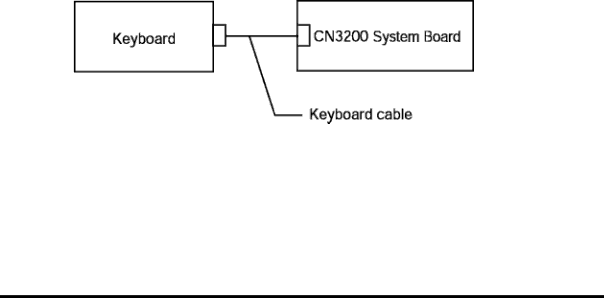

Check 1 Make sure the keyboard cable is securely connected to the connector CN3200 on the system board.

If the connection is loose, reconnect firmly and repeat Procedure 1. If there is still an error, go to Check 2.

Check 2 The keyboard or its cable may be damaged. Replace it with a new one following the instructions in Chapter 4, Replacement Procedures. If the problem still exists, perform Check 9.

2-46

[CONFIDENTIAL]

TECRA S3 Maintenance Manual (960-532)
