Intel 820E 2.12.5. Secondary IDE Connector Requirements

Intel® 820E Chipset

R

84 Design Guide

2.12.5. Secondary IDE Connector Requirements

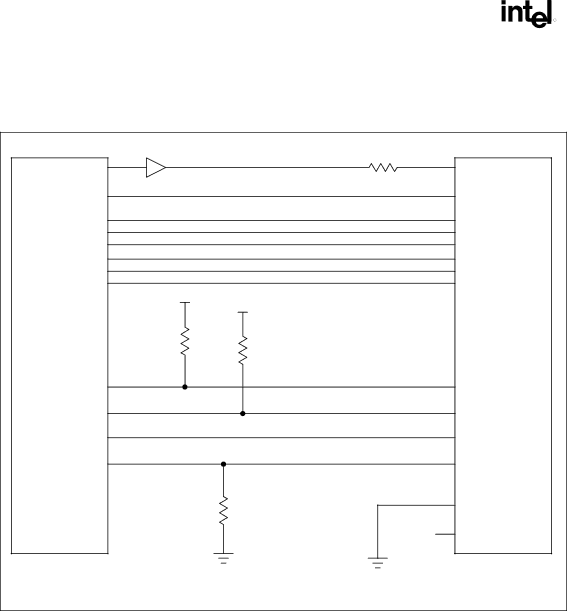

Figure 49. Connection Requirements for Secondary IDE Connector

PCIRST# *

SDD[15:0]

SDA[2:0]

SDCS1#

SDCS3#

SDIOR#

SDIOW#

SDDREQ

SIORDY

IRQ15

SDDACK#

GPIOy

ICH2

Secondary IDE

Connector

IDE_secondary_conn_require

Reset#

PDIAG# / CBLID#

N.C.

Pins 32 & 34

CSEL

* Due to ringing, PCIRST#

must be buffered.

3.3 V 3.3 V

4.7 k

Ω

8.2–10 k

Ω

10 k

Ω

22–47

Ω

PCIRST_BUF#

NOTES:

1. 22 Ω to 47 Ω series resistors are required on RESET#. The correct value should be determined for each

unique motherboard design, based on the signal quality.

2. An 8.2 kΩ to 10 kΩ pull-up resistor is required on IRQ14 and IRQ15 t o VCC3.

3. A 4.7 kΩ pull-up resistor to V CC3 is required on PIORDY and SIORDY

4. Series resistors can be pl aced on the control and data lines to improve signal quality. The resistors are place

as close as possible to the connector. Values are determined for each unique motherboard design.

5. A 10 kΩ pull-down resistor to ground is required on t he PDIAG/CBLID signal. This prevents the GPI pin from

floating if a device is not present on the secondary IDE interface.
