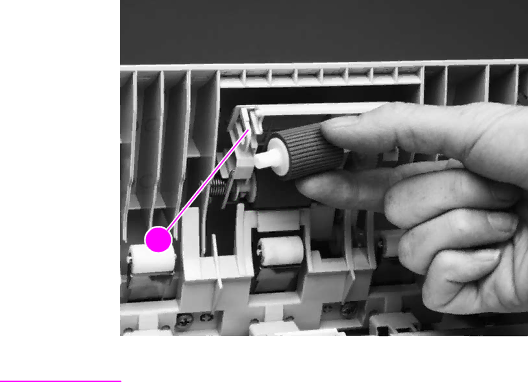

HP 4101mfp Hint, Figure 33. Remove the ADF pickup roller

4Slide the roller toward the gear end. Gently pry the roller-shaft locking tab (callout 4) away from the roller. Remove the ADF pickup roller.

Figure 33. Remove the ADF pickup roller

Hint	When replacing the roller, verify that the roller gear and drive gear are properly meshed.

C9148-90909

6 Removal and replacement 75
