Fault Detect Station Number





FL On Delay

Fault Detect Station Number





Program



Communication Settings Fault Detect Station Number

Parameter Type — Selection List

In a multiple-ASD configuration this setting determines the ASD responsible

Factory Default — 0



for fault notification.





Changeable During Run — Yes

























Minimum — 0













Maximum — 64

FL Off Delay









Program



Terminal Settings

Terminal Delays

Output Terminal

Parameter Type — Numerical

Delays

FL

FL Off Delay





Factory Default — 2.0













This parameter delays the response of the FL output terminals by the

Changeable During Run — No

programmed value.











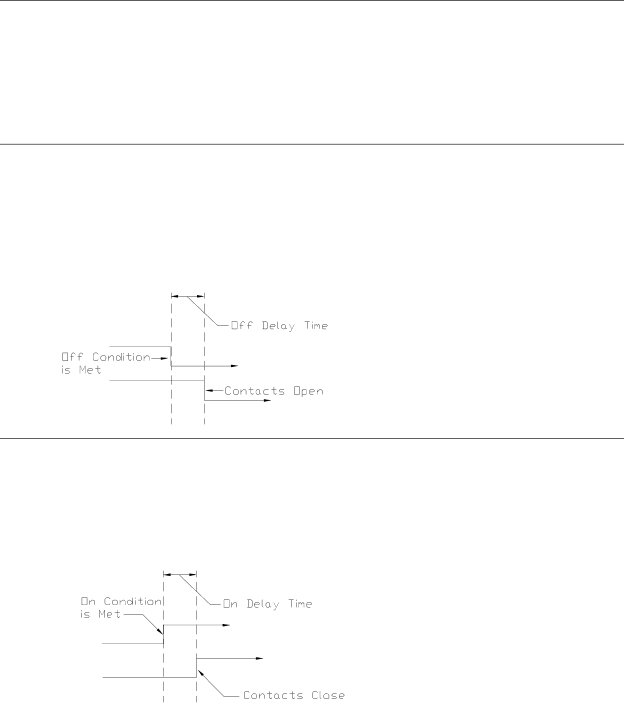

The on and off delay times of the FL terminals may be adjusted to provide

Minimum — 2.0



more response time to the device that is connected to the output terminals.

Maximum — 200.0

















Units — mS

FL On Delay









Program



Terminal Settings

Terminal Delays

Output Terminal

Parameter Type — Numerical

Delays

FL

FL On Delay

⇒⇒



Factory Default — 2.0

⇒⇒













This parameter⇒⇒delays the response of the FL output terminals by the

Changeable During Run — No

programmed value.











The delay may be increased to prevent relay chatter.



Minimum — 2.0











⇒⇒



Maximum — 200.0









Units — mS
