Program Fundamental Parameters	Fundamental #1
⇒	⇒⇒

Acceleration/Deceleration #1 Pattern

This parameter enables a user-selected preprogrammed output profile that controls the acceleration and deceleration pattern for the #1 Accel/Decel parameter.

Settings:

Linear

S-Pattern 1

S-Pattern 2

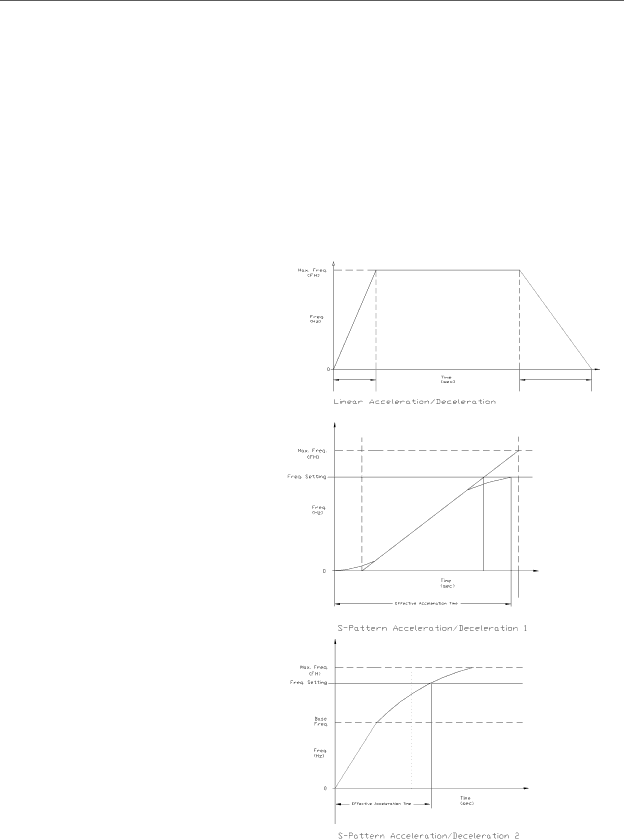

The figures below provide a profile of the available accel/decel patterns.

Linear acceleration and deceleration is the default pattern and is used on most applications.

Parameter Type — Selection List

Factory Default — Linear Changeable During Run — No

S-pattern 1 is used for applications that	Changeable During Run — Yes
require quick acceleration and deceleration.
This setting is also popular for applications that
require shock absorption at the start of
acceleration or deceleration.

S-pattern 2 acceleration and deceleration decreases the rate of change above the base frequency.

W7 ASD Installation and Operation Manual 53
