LCS60 Configuration and Connection for PPP Service

Note: The user should familiarize him/herself with all aspects of the LCS60

PPPservice. For details, including a description of Multiple IP Subnet- works, refer to Chapter 1.

After configuring the LCS60 as described under Initial Setup in Chapter 3, perform the steps shown in Figure 4-2 to configure the LCS60 PPP Service.

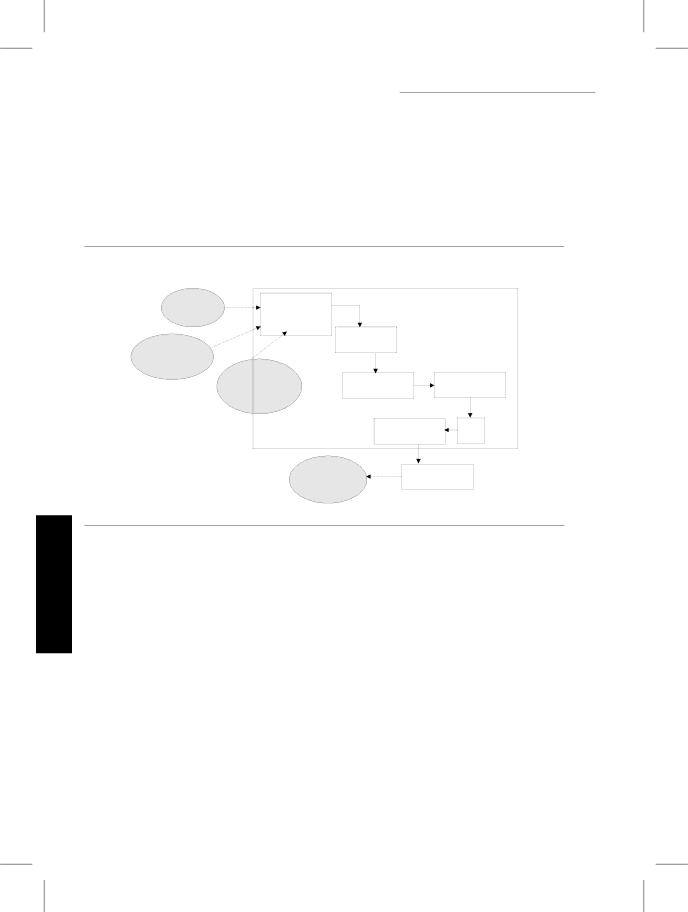

Figure 4-2: Configuring PPP Service for IP, IPX, and AppleTalk

For TCP/IP

config protocol

obtain virtual

tcpip, atalk

IP address

ppp, ipx

For IPX

maxsessions

obtain virtual

network number

For

AppleTalk

obtain

virtual

ipas

atalkas

network

number

and Zone name

srvsetup

etherif

ipx

configure client

start all

side of PPP

service

PPP

1. Obtain the Ethernet IP address for the LCS60 and an IP network address for each IP network security group. At least one IP address, in addition to the Ethernet address, is required for SLIP and PPP service in order to configure the physical connection used for SLIP/PPP. These IP network addresses must be different from the LCS60's Ethernet internet address.

2. If you will be using AppleTalk, obtain the AppleTalk virtual network number and zone name. The network number and zone must be different from the LCS60 AppleTalk Network and zone via the Ethernet.

3. If you will be using IPX, obtain the IPX virtual network number, Ethernet frame type, and Ethernet network number. The virtual network number must be different from the LCS60 IPX network via the Ethernet.

4-2

Issue 3
