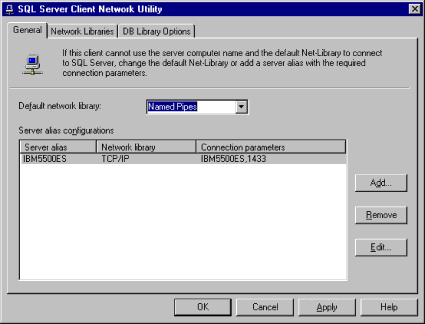

Figure 117. Server Client Network Utility Screen

18.Click OK.

8.From the Windows NT desktop, access the User Manager for Domains under Administrative Tools (Common) to create user ID JDE and assign it the password JDE. Give this user administrative rights.

9.Log off and log on with the JDE ID.

Note: After logging back on, you may be required to complete the installation of the Service Processor DLL file and device driver. Press Enter twice.

10.Configure FTP on the deployment server by performing the following steps:

1.Check if FTP is already installed. Go to the Control Panel and double-click Network. Select the Services tab.

2.If Microsoft Internet Information Server (MIIS) does not exist, click Add and select Microsoft Internet Information Server. Click OK and follow the instructions to install MIIS. Select:

Internet Service Manager

FTP Service

3.Click Close to go back to the Windows NT desktop.

4.To configure FTP, select Start > Programs > Microsoft Internet Server > Internet Service Manager.

5.Right-click the FTP service with your computer name, and choose Service Properties.

6.Make sure Allow Anonymous Connections is not chosen.

7.Read the warning message that is displayed and click Yes.

8.On the FTP Service Properties, click the Directories tab, then click Add.

174J.D. Edwards’ OneWorld B73.3 and Windows Terminal Server
