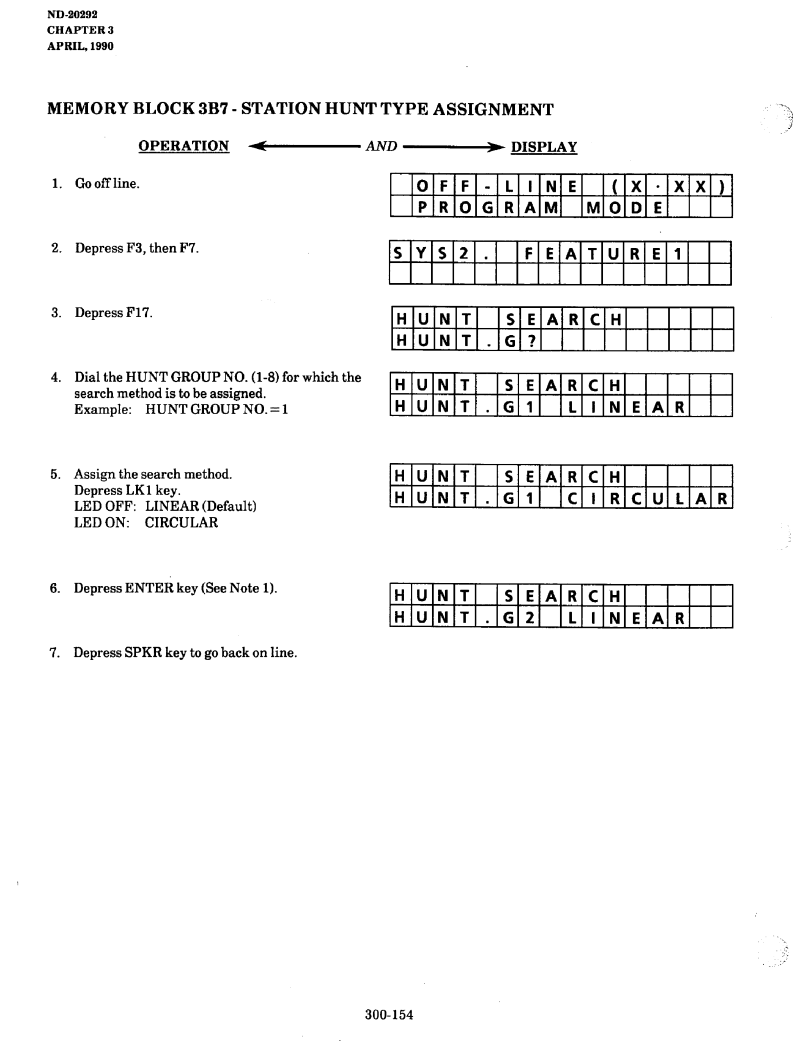

MEMORY BLOCK 3B7 - STATION HUNT TYPE ASSIGNMENT

OPERATION

-

AND 1-W

DISPLAY

1.Go off line.

2.Depress F3, then F7.

3.Depress F17.

4.Dial the HUNT GROUP NO. (l-8) for which the search method is to be assigned.

Example: HUNT GROUP NO. = 1

5.Assign the search method. Depress LK 1 key.

LED OFF: LINEAR (Default)

LED ON: CIRCULAR

6.Depress ENTER key (See Note 1).

7.Depress SPKR key to go back on line.

OFF	-LINE	(X-XX)
PROGRAM		MODE
SYSZ.		FEATURE1

HUNTSEARCH

HUNT.G?

H UN TI SEARCH

H UN Tl. G 1 LINEAR

HUNTSEARCH

HUNT.GlCIRCULAR

HUNTSEARCH

HUNT.GZLINEAR

-.

‘; .

300-154

Image 237

NEC nd-20292 Memory Block 3B7 Station Hunt Type Assignment, UN Tl. G 1 Linear, HUNT.GlCIRCULAR, Huntsearch HUNT.GZLINEAR
