Memory Block 3ElO Special Code Assignment, 144 | NEC nd-20292

ND-20292

CHAPTER 3

APRIL, 1990

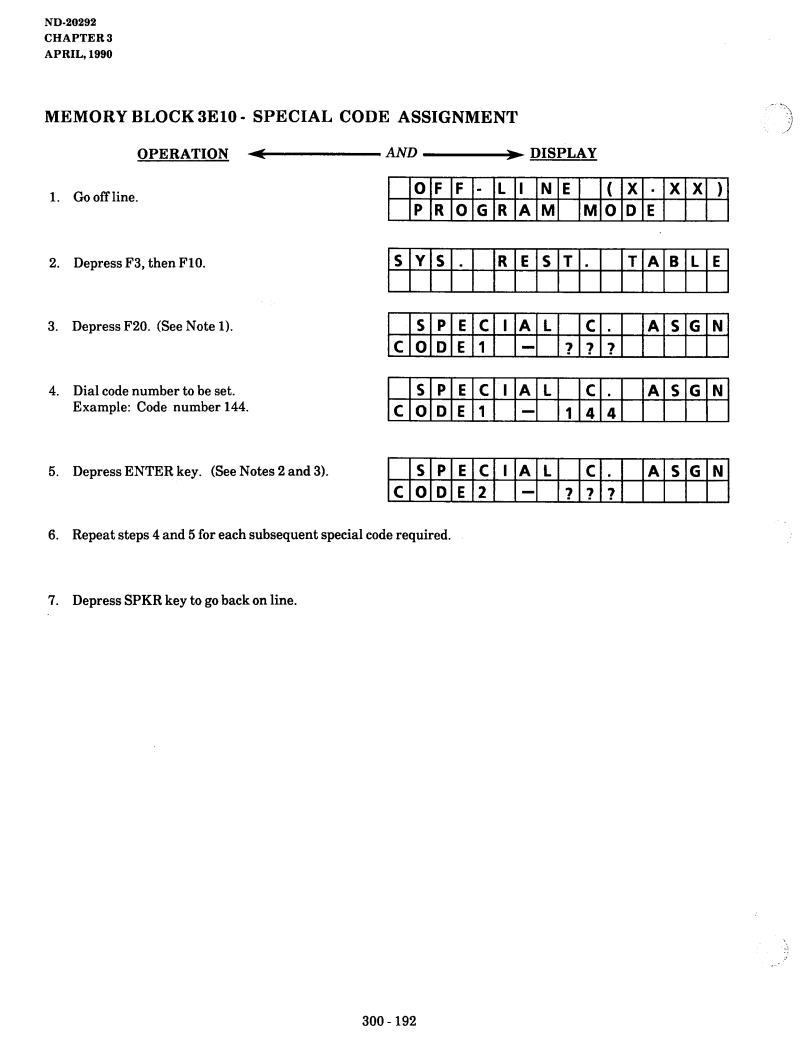

MEMORY BLOCK 3ElO - SPECIAL CODE ASSIGNMENT

OPERATION

7

AND 8-W

DISPLAY

1.Go off line.

2.Depress F3, then FlO.

3.Depress F20. (See Note 1).

4.Dial code number to be set. Example: Code number 144.

5.Depress ENTER key. (See Notes 2 and 3).

OF F -	LINE			(X.Xx)
PROGRAM			MODE
SYS.	REST.			TABLE
SPECIAL			C.	ASGN
CODE1	-	?	?	1
SPECIAL			C.	ASGN
CODE1	-	144
SPECIAL			C.	ASGN
CODE2	-	?	?	?

6.Repeat steps 4 and 5 for each subsequent special code required.

‘7. Depress SPKR key to go back on line.

300 - 192

Image 275

NEC nd-20292 manual Memory Block 3ElO Special Code Assignment, Line Program Mode SYS Rest Special, CODE1 Special, 144
