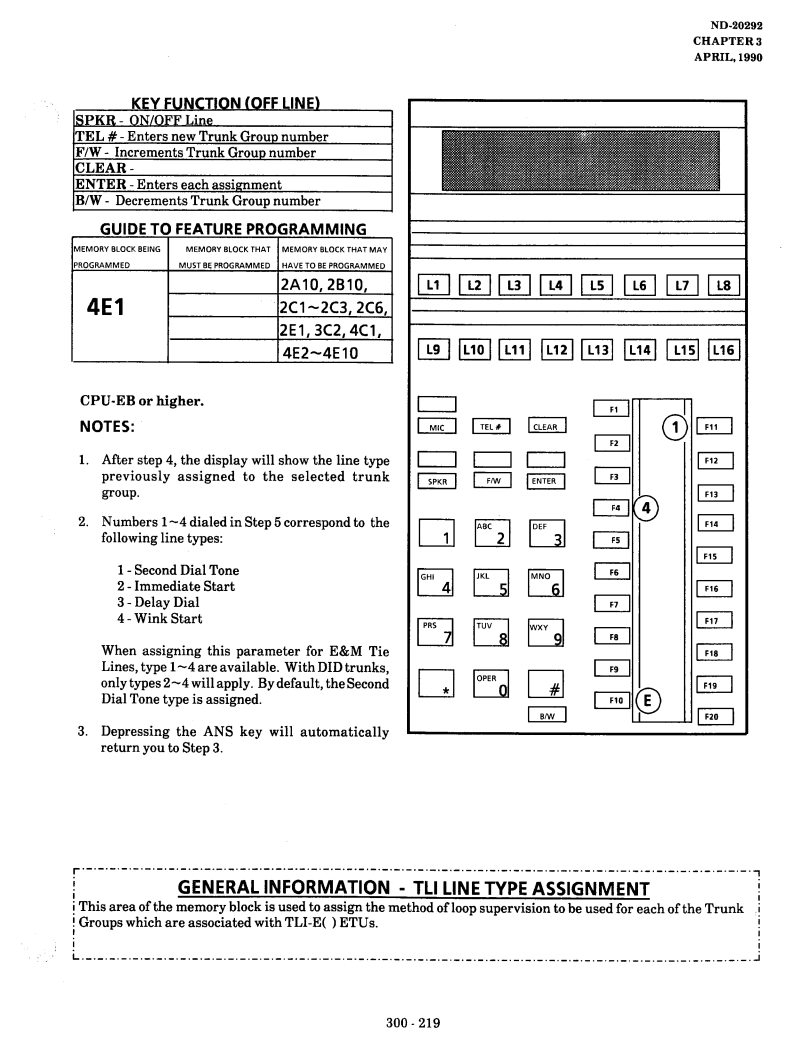

General Information TLI Line Type Assignment | NEC nd-20292 specification

KEY FUNCTION (OFF LINE)

BPKR - ON/OFF Line

TEL # - Enters new Trunk Group number F/W - Increments Trunk Group number

CLEAR -

ENTER - Enters each assignment

B/W - Decrements Trunk Groun number

ND-20292

CHAPTER 3

APRIL, 1990

-

GUIDE TO FEATURE PROGRAMMING

MEMORY BLOCK BEING	MEMORY BLOCK THAT	MEMORY BLOCK THAT MAY
PROGRAMMED	MUST BE PROGRAMMED	HAVE TO BE PROGRAMMED
4El		2AlO,ZBlO,
4El		2Cl-2C3,2C6,
		2E1,3C2,4Cl,
		4E2-4ElO

CPU-EB or higher.

NOTES:

1.After step 4, the display will show the line type

previously assigned to the selected trunk group.

2.Numbers l-4dialed in Step 5 correspond to the following line types:

1 - Second Dial Tone

2 - Immediate Start

3 - Delay Dial

4 -Wink Start

When assigning this parameter for E&M Tie Lines, type l-4 are available. With DID trunks, only types 2-4 will apply. By default, the Second Dial Tone type is assigned.

3.Depressing the ANS key will automatically return you to Step 3.

i	GENERAL INFORMATION - TLI LINE TYPE ASSIGNMENT
i

i This area of the memory block is used to assign the method of loop supervision to be used for each of the Trunk f Groups which are associated with TLI-E( 1ETUs.

I

: .

._._._.-.-.-.-,-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.

i i

i

i

I

i

300- 219
