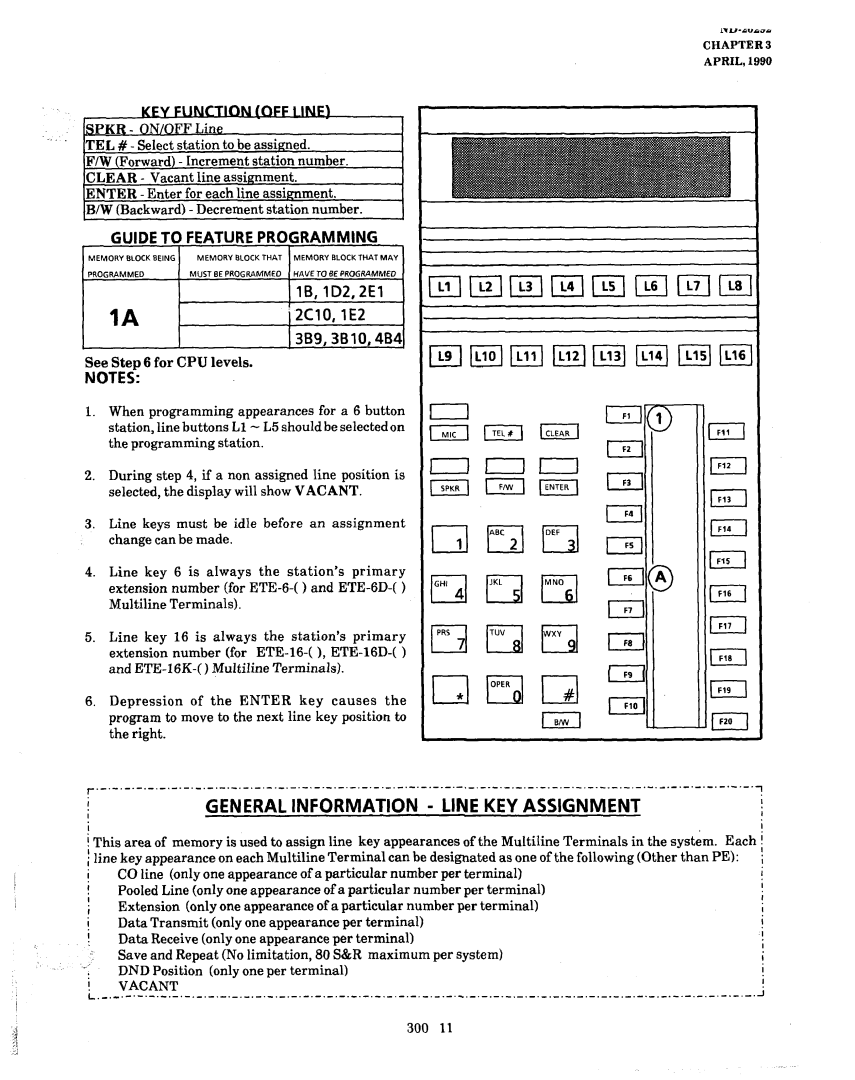

CHAPTER 3

APRIL. 1990

KFY FUNCTION (OFF 1 INE,) gPKR - ON/OFF Line

TEL # - Select station to be assigned.

F/W (Forward) - Increment station number. CLEAR - Vacant line assignment.

ENTER - Enter for each line assignment.

B/W (Backward) - Decrement station number.

,	GUIDE TO FEATURE PROGRAMMING			I
,	I	I		I
	MEMORY BLOCK BEING	MEMORY BLOCK THAT	MEMORY BLOCK THAT MAY
	PROGRAMMED	MUST BE PROGUAMMEO	HAVE TO BE PROGRAMMEU

IA

lB,lD2,2El -2ClO,lE2

3B9,3B10,4B4

See Step 6 for CPU levels.

NOTES:

1.When programming appearances for a 6 button station, line buttons L1 - L5 should be selected on the programming station.

2.During step 4, if a non assigned line position is selected, the display will show VACANT.

3.Line keys must be idle before an assignment change can be made.

4.Line key 6 is always the station’s primary extension number (for ETE-8( ) and ETE-GD-( ) Multiline Terminals).

5.Line key 16 is always the station’s primary extension number (for ETE-18( 1, ETE-16D-( ) and ETE-16K-( ) Multiline Terminals).

6.Depression of the ENTER key causes the program to move to the next line key position to the right.

I	GENERAL INFORMATION - LINE KEY ASSIGNMENT	i
i	GENERAL INFORMATION - LINE KEY ASSIGNMENT	i
i		i

! This area of memory is used to assign line key appearances of the Multiline Terminals i line key appearance on each Multiline Terminal can be designated as one of the following

iCO line (only one appearance of a particular number per terminal)

i	Pooled Line (only one appearance of a particular number per terminal)
i

iExtension (only one appearance of a particular number per terminal)

iData Transmit (only one appearance per terminal)

iData Receive (only one appearance per terminal)

.’ Save and Repeat (No limitation, 80 S&R maximum per system) DND Position (only one per terminal)

iI. VACANT

_.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.~.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.

in the system. Each [

(Other than PE): i i

i

i i

i i

i i

i i

i

300 11
