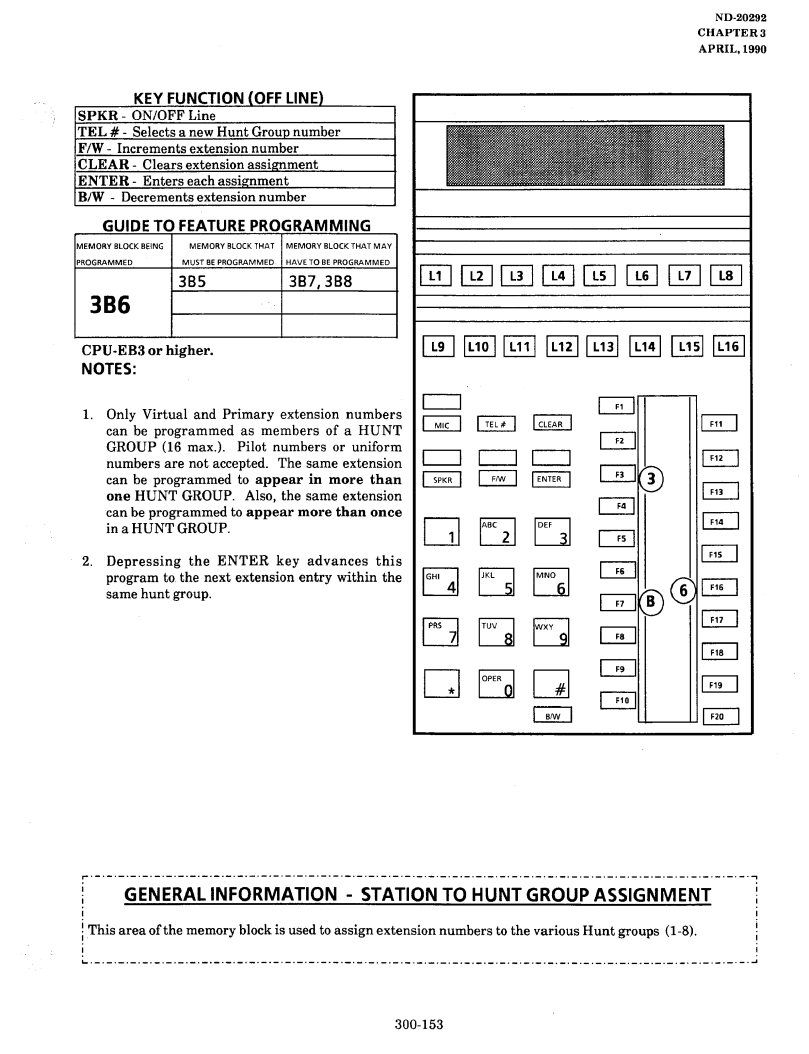

3B6, 3B5 3B7,3B8 | NEC nd-20292 instruction

ND-20292

CHAPTER 3

APRIL, 1990

KEY FUNCTION (OFF LINE)

SPKR - ON/OFF Line

TEL # - Selects a new Hunt Group number

F/W - Increments extension number

CLEAR - Clears extension assignment

ENTER - Enters each assignment

B/W - Decrements extension number

GUIDE TO FEATURE PROGRAMMING

MEMORY BLOCK BEING	MEMORY BLOCK THAT	MEMORY	BLOCK THAT MAY
PROGRAMMED	MUST BE PROGRAMMED	HAVETO	BE PROGRAMMED
	3B5	3B7,3B8

3B6

CPU-EB3 or higher.

NOTES:

1.Only Virtual and Primary extension numbers can be programmed as members of a HUNT GROUP (16 max.). Pilot numbers or uniform numbers are not accepted. The same extension can be programmed to appear in more than one HUNT GROUP. Also, the same extension can be programmed to appear more than once in a HUNT GROUP.

2.Depressing the ENTER key advances this program to the next extension entry within the same hunt group.

El

	i	GENERAL INFORMATION - STATION TO HUNT GROUP ASSIGNMENT	i
	i		I
	i This area of the memory block is used to assign extension numbers to the various Hunt groups (l-8).		I
			I
	I		I
	I		I

L.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.~

300-153

Image 236

NEC nd-20292 manual 3B6, General Information Station to Hunt Group Assignment, 3B5 3B7,3B8
