General Information TLI Dial Tone Assignment, Qfj | NEC nd-20292

ND-20292

CHAPTER3

APRIL, 1990

KFY FUNfTlON (OFF 1 INFI

.SPKR - ON/OFF Line

TEL # - Enters new Trunk Group number F/W - increments Trunk Group number

CLEAR -

ENTER - Enters each assignment

B/W - Decrements Trunk Groun number

GUIDE TO FEATURE PROGRAMMING

WEMORY BLOCK BEING	MEMORY BLOCK THAT	MEMORY	BLOCK THAT MAY
‘ROGRAMMED	MUST BE PROGRAMMED	HAVE TO BE PROGRAMMED
	4El	ZAlO,ZBlO,
4E2	'-“	ZCl-2C3,2C6,
		2El.	4E3-4ElO

CPU-EB or higher.

NOTES:

1.After a Trunk Group has been selected, Ll and L2 will show the previous assignment.

2.When the Trunk Group being programmed is comprised of DID trunks, do not send dial tone to either side.

3.Depressing the ANSWER key will automatically bring you to Step 3.

4. Distant	End	L 1 3	ON	QFJ
			Send	Do not
System	End	L 2	Dial	Send
			Tone	Dial Tone

-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-

I I

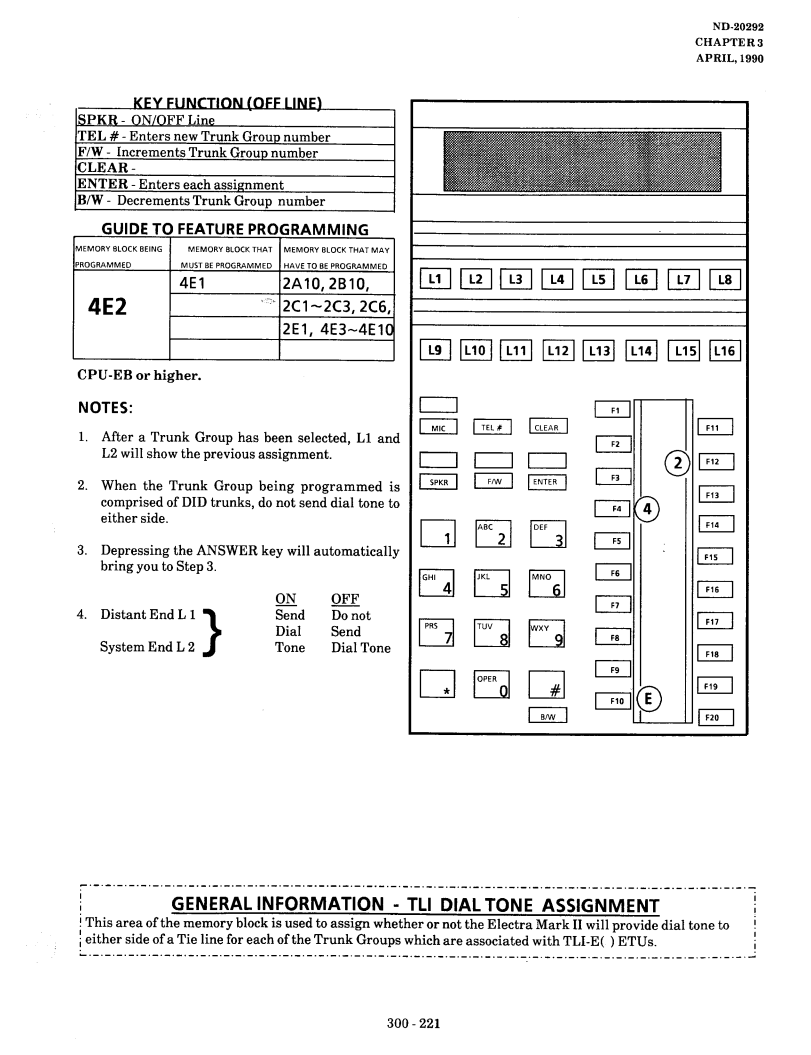

GENERAL INFORMATION - TLI DIAL TONE ASSIGNMENT

I

i

! This	area	of the memory	block is used	to assign whether or not	the Electra	Mark	II will	provide dial tone to	i
f either	side	of a Tie line	for each of the	Trunk Groups which are	associated	with	TLI-E(	) ETUs.	I
-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-									I

300 - 221

Image 304

NEC nd-20292 manual General Information TLI Dial Tone Assignment, Qfj
