Toshiba H9 F191 F192, Five-Point Setting Voltage, Frequency, Direct Access Number F191

F191 F192

V/f Five-Point Setting Voltage 1

Program ⇒ Special ⇒ V/f Five-Point Setting

The V/f Five-Point Setting Voltage 1 establishes the output voltage level that is to be associated with the frequency setting of F190 (V/f Five-Point Setting

Frequency 1).

The F701 parameter setting will determine if the on-screen selection for this parameter appears in the form of a Voltage (V) or as a Percentage (%) of the ASD rating.

If using Voltage as a unit of measure and with no voltage correction (F307 Disabled), the limit of the on-screen display value for this parameter is 200 volts for the 230-volt ASD and 400 volts for the 460-volt ASD.

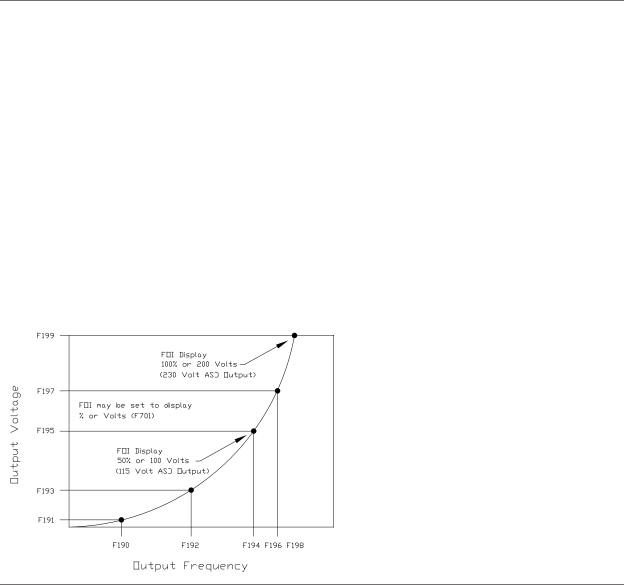

The actual output voltage is scaled to the maximum EOI display values (e.g., a 100-volt EOI display corresponds to a 115-volt actual output for the 230-volt ASD — ½ of the full display range).

If using % as a unit of measure and with no voltage correction (F307 Disabled), the ASD output voltage will be the percentage setting times 230 for the 230- volt unit (or % times 460 volts for the 460-volt unit).

See F190 for additional information on this setting.

Direct Access Number — F191

Parameter Type — Numerical

Factory Default — 0.0

Changeable During Run — No

Minimum — 0.0

Maximum — 100.0

Units — V or % (F701)

V/f Five-Point Setting Frequency 2

Program ⇒ Special ⇒ V/f Five-Point Setting

The Custom V/f Five-Point Setting Frequency 2 sets the frequency to be associated with the voltage setting of parameter F193 (V/f Five-Point Setting Voltage 2).

See F190 and F191 for additional information on this setting.

Direct Access Number — F192

Parameter Type — Numerical

Factory Default — 0.00

Changeable During Run — No

Minimum — 0.00

Maximum — Max. Freq. (F011)

Units — Hz

102 H9 ASD Installation and Operation Manual
