F216

F217

XRX Input Point 1 Setting

Program Frequency Speed Reference Setpoints

This parameter is used to set the gain and bias of the RX input terminal when the RX terminal is used as the control input while operating in the Speed Control mode or the Torque Control mode.

This parameter sets the RX input level that is associated with RX Input Point 1 Frequency when operating in the Speed Control mode or is associated with the RX Input Point 1 Rate when operating in the Torque Control mode.

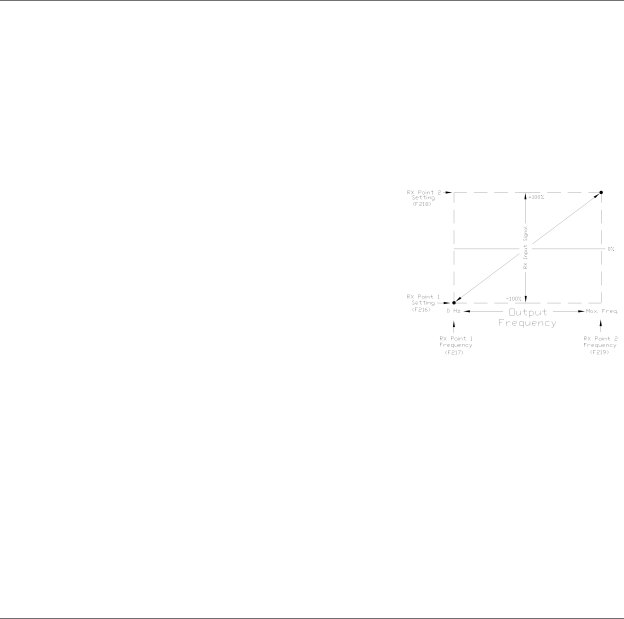

RX Input Speed Control Setup

Direct Access Number — F216

Parameter Type — Numerical

Factory Default — 0

Changeable During Run — Yes

Minimum — -100

Maximum — +100

Units — %

Frequency Settings

Perform the following setup to allow the system to receive Speed control input at the RX input terminal:

Program Fundamental Standard Mode Selection Frequency Mode 1 RX.

Program Fundamental Standard Mode Selection Command Mode Selection Terminal Block.

Speed Control

Perform the following setup to allow the system to perform Speed control from the RX input terminal:

Set RX Input Point 1 Frequency (F217).

Set RX Input Point 1 Setting (F216) — the input analog signal level that corresponds to the speed setting at RX Input Point 1 Frequency.

Set RX Input Point 2 Frequency (F219).

Set RX Input Point 2 Setting (F218) — the input analog signal level that corresponds to the speed setting at RX Input Point 2 Frequency.

Provide a Run command (F and/or R).

Once set, as the RX input voltage changes, the ASD output speed and/or torque will vary in accordance with the above settings.

This parameter value is entered as -100% to +100% of the RX input signal range.

See parameter F474 and F475 for information on fine-tuning this terminal response.

RX Input Point 1 Frequency

Program Frequency Speed Reference Setpoints

This parameter is used to set the gain and bias of the RX input terminal when the RX terminal is used as the control input while operating in the Speed Control mode.

This parameter sets RX Input Point 1 Frequency and is the frequency that is associated with the setting of RX Input Point 1 Setting when operating in the Speed Control mode.

See RX Input Point 1 Setting for more information on this setting.

Direct Access Number — F217

Parameter Type — Numerical

Factory Default — 0.00

Changeable During Run — Yes

Minimum — 0.00

Maximum — Max. Freq. (F011)

Units — Hz

H9 ASD Installation and Operation Manual

113
